Add to Cart

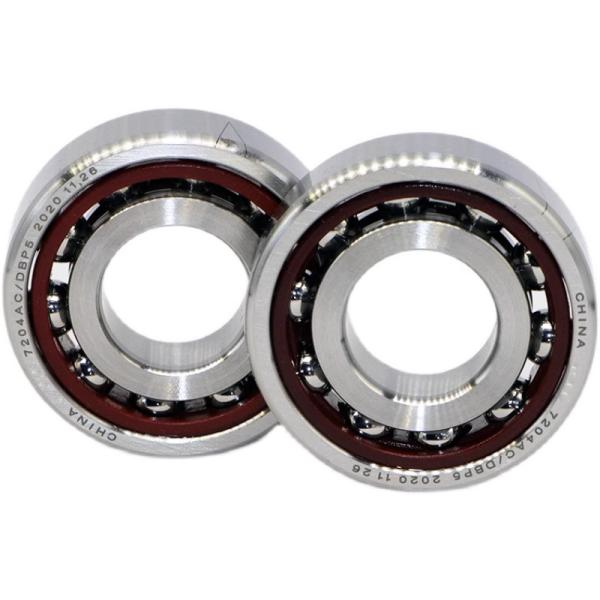

| Name | Angular contact ball bearing |
| Seires | BAR Series |
| Brand | MONTON |
| Model | 100BTR10STYNDBLP4A |
| Contact Angle | 15°/25°/40° |
| d | 100mm |
| D | 150mm |
| 2B | 45mm |
| Ring Material | Gcr15/ Carbon Steel/ Stainless Steel/ Si3N4/ ZrO2 |
| Cage Material | Nylon/phenolic resin |
| Load rating C | 51.5kN |
| Load rating Co | 114kN |
| Grease speed | 5 200 |
| Oil speed | 6 800 |
| Sealed | as customer requested |
| Weight | 1.399KG |
| Bearing Arrangement | U/DB/DT/TBT/QBC/DU/QU ect. |
| Design Structure | Angular contact |
| Precision | P4,P5 or as customer requested |
| Vibration | ZV1, ZV2, ZV3, or as customer requested |
| Clearance | C0, C2, C3, or as customer requested |
| Quality standard | ISO9001: 2000/SGS |
| Package | single box |
| Original | Luoyang |
| Service | OEM |
| Delivery date | Accordingly |
| Application | Spindle,Auto, tractor ,machine tool, electric machine, water pump, agricultural machinery and textile machinery,air compressor,shippiing.logistic,areospace |
